Matomo

Matomo is open-source web analytics that you host yourself. This chart runs the official matomo image (Apache variant). By default it also creates a MariaDB database through mariadb-operator, but any MySQL or MariaDB server works.

Why it's in KubeAid​

Chart 2.x wrapped the Bitnami chart. Bitnami stopped publishing Matomo in August 2025 and bitnamilegacy/matomo ends at 5.3.2, so since 3.0.0 the templates are our own: a Deployment, Service, Ingress, PVC and archive CronJob. With mariadb.enabled it adds the MariaDB and Database resources and an optional logical-backup CronJob.

How it works​

Matomo's code is not kept on the volume. Each pod copies it from the image into an emptyDir, and the PVC only holds config/, misc/ (uploaded logos and the GeoIP database) and the plugins from plugins. To upgrade Matomo, change image.tag.

The setup init container runs before Apache starts. It downloads each plugin in plugins if that version is not on the PVC yet, then runs core:update twice. The second run is needed because an update can activate a plugin whose database columns are only added on the next run; 5.9 does this with AIAgents and log_visit.ai_agent_name. After that it activates the plugins and writes trusted_hosts, the proxy settings and the OIDC settings to config.ini.php. It also sets enable_auto_update = 0 and enable_update_communication = 0, because the version comes from image.tag and the one-click updater and update emails would only get in the way. The pod has a checksum of the setup ConfigMap as an annotation, so it restarts when these values change.

The matomo-archive CronJob runs core:archive every 5 minutes, which also runs the scheduled tasks. It mounts the same PVC, so the PVC has to be ReadWriteMany (for example ceph-filesystem) unless the cluster has a single node. The chart turns off archiving from the browser in the config file. If "Archive reports when viewed from the browser" was ever changed under Administration > System > General settings, that value wins, so set it to No there.

Matomo sends email for password resets, scheduled reports and a few scheduled tasks. The image has no local mail server, so set up SMTP under Administration > System > General settings if you need any of that. Without it those tasks log an error, and the archive job that ran them exits with an error once.

Prerequisites​

  • A ReadWriteMany storage class for persistence.storageClassName.
  • A database: either mariadb-operator on the cluster (the default), or your own MySQL or MariaDB server.

Database​

With mariadb.enabled: true the chart creates a MariaDB through mariadb-operator, with a database and a matomo user. Its volume uses the cluster's default storage class unless you set mariadb.storage.storageClassName. On our clusters rook-ceph once made the MariaDB probes fail because the root password did not get set, and zfs-localpv was used instead.

Daily dumps are off by default. To turn them on, set mariadb.logicalbackup.enabled: true and mariadb.logicalbackup.provider to s3 (with s3bucket, s3endpoint and a matomo-mariadb-pod-env Secret holding AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY) or az. The chart refuses to render with backups on and no valid provider.

To use a database you already have, such as Amazon RDS, Cloud SQL or a MariaDB outside the cluster, set mariadb.enabled: false. The chart then creates no database resources and you enter the host, database name, user and password in the web installer. Backups of that database are up to you.

Values​

ValueDefaultMeaning
image.tag5.14.0-apacheMatomo version. Use an -apache tag.
hostmatomo.example.comIngress host, trusted_hosts entry and the --url for core:archive.
extraHosts[]More hosts to serve and trust, for example a test hostname during a migration.
ingress.className, ingress.annotations, ingress.tls"", {}, trueThe TLS secret is matomo-tls. tls also sets assume_secure_protocol.
persistence.storageClassName, persistence.accessMode, persistence.size"", ReadWriteMany, 1GiThe matomo PVC.
plugins[]List of {name, version} from plugins.matomo.org. A new version replaces the old one.
archive.schedule*/5 * * * *Schedule of the core:archive CronJob.
geoip.enabledfalseDownload the DB-IP city database for the location reports.
oidc.*disabledKeycloak login, see below.
mariadb.enabledtrueCreate the database with mariadb-operator. Set false to use your own.
mariadb.imagemariadb:latestPin a version such as mariadb:12.3 so the server is not upgraded unexpectedly.
mariadb.passwordSecretKeyRefmatomo-user / db-password, generatedPassword of the Matomo database user. The backup CronJob uses it too.
mariadb.rootPasswordSecretKeyRefmatomo-secrets / MARIADB_ROOT_PASSWORD, generatedNeeded with zfs-localpv, otherwise the PVC stays Pending.
mariadb.storage.storageClassName""Empty uses the cluster's default storage class.
mariadb.storage.size1GiCan be resized while in use.
mariadb.imagePullSecrets[]Pull secrets for the MariaDB image, e.g. [{name: registry}].
mariadb.logicalbackup.enabledfalseDaily dump CronJob, at 30 00 * * * by default. Needs provider.

Fresh install​

There is no config.ini.php on a new install, so Matomo starts with its web installer. Anyone who can reach the host can run it, so do it right after the first sync.

  1. Open https://<host> and go through the steps. Click Next once and wait; the database and table steps take a few seconds, and a second click can leave the install half done.
  2. On the database step keep the values that are filled in. With mariadb.enabled the password comes from the secret and shows masked. With your own database, enter its details.
  3. Create the superuser and the first website. Keep IP anonymisation ticked on the last page.
  4. Restart the deployment so the setup container activates the plugins and writes the settings: kubectl -n matomo rollout restart deploy/matomo

Until the installer is done, the archive job fails because there is no config to read. If the installer page shows without styling, hard-refresh the browser.

GeoIP​

Set geoip.enabled: true to get country and city in the location reports. The setup container downloads the free DB-IP city database (about 130 MB) into misc/ and switches the location provider to it. The file is downloaded again on pod start once it is older than 30 days. A failed download does not stop the pod.

Keycloak login (OIDC)​

Matomo has no OIDC support of its own. The LoginOIDC plugin adds it.

  1. In Keycloak, create a client in your realm: client ID matomo, access type confidential, standard flow enabled, valid redirect URIs https://<matomo>/index.php?module=LoginOIDC&action=callback&provider=oidc and https://<matomo>, web origins +. Copy the client secret from the Credentials tab.
  2. Put the client secret in a Secret under the key MATOMO_OIDC_CLIENT_SECRET and set:
plugins:
  - name: LoginOIDC
    version: 5.0.0
oidc:
  enabled: true
  existingSecret: matomo-oidc                   # default
  keycloakUrl: https://your-keycloak.com/auth   # include the context path if any
  realm: your-realm
  allowedSignupDomains: example.com             # empty allows all domains
  # optional: clientId (matomo), buttonName (Login with Keycloak),
  # userinfoId (email), scope (openid email), allowSignup (true)

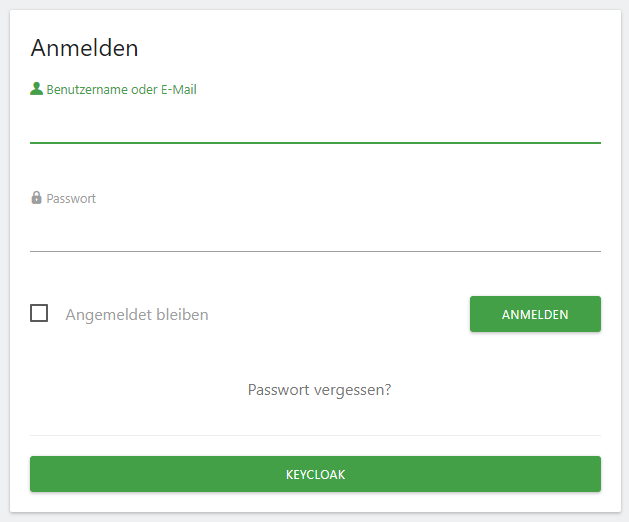

The settings are written to config.ini.php, which takes precedence over the database, so they are read-only in the UI. The login page then has a "Login with Keycloak" button. Users logging in through OIDC for the first time have no access to any site; give it to them under System > Users.

Migrating from chart 2.x​

The database stays as it is. Only the config file and the plugin list move.

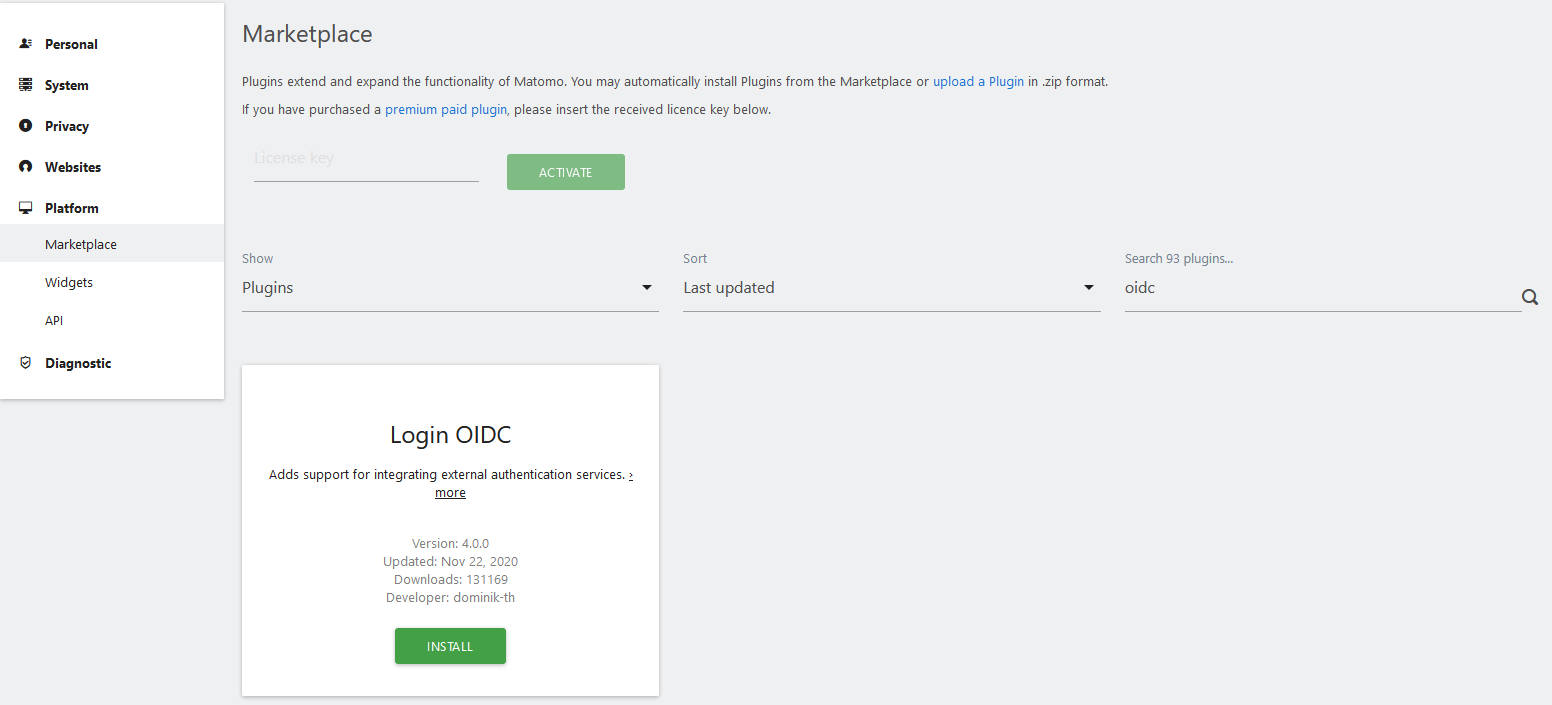

  1. Add the plugins you installed from the Marketplace to plugins, with their versions. The plugins page under Administration lists them. They were on the Bitnami volume and don't carry over by themselves.
  2. Copy the config out of the old pod: kubectl -n matomo cp <old-pod>:/bitnami/matomo/config/config.ini.php ./config.ini.php
  3. Delete the old matomo Deployment, because its selector is different and a sync can't change it, and the matomo-scheduled-tasks CronJob, which would keep running the old code. Then sync 3.x. The new pod starts with the web installer. Don't run it.
  4. Copy the config in and restart. The setup container upgrades the database.
kubectl -n matomo cp ./config.ini.php <new-pod>:/var/www/html/config/config.ini.php -c matomo
kubectl -n matomo exec <new-pod> -c matomo -- chown 33:33 /var/www/html/config/config.ini.php
kubectl -n matomo rollout restart deploy/matomo
kubectl -n matomo logs deploy/matomo -c setup
  1. When everything works, delete the old Bitnami PVC matomo-matomo.

Superusers​

By default Matomo allows only one superuser through the UI. To give more users superuser access, set it in the database from the MariaDB pod:

mariadb -u root -p$MARIADB_ROOT_PASSWORD    -- no space after -p
use <db_name>;
UPDATE `matomo_user` SET superuser_access = 1 WHERE `login` = 'username-here';
